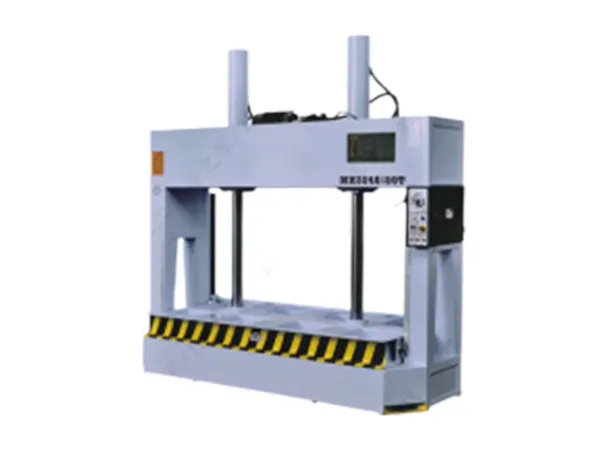

Steel Door Cold Press Machine

Lamination press for gluing and pressing of metal sheets for steel door panel production

NCM-LY

Steel Door Cold Press Machine

Lamination press for gluing and pressing of metal sheets for steel door panel production

Steel door cold press machine is highly efficient equipment designed specifically for the cold pressing and lamination of metal door panels. It is fully automated and operates in a single-piece flow mode, maximizing production efficiency. With a maximum pressure of 50T, it can handle 8 to 15 doors simultaneously. The automatic operation eliminates the need for additional space for material storage.

Request a Quote

Applications

Security doors
Fire-rated doors

Details

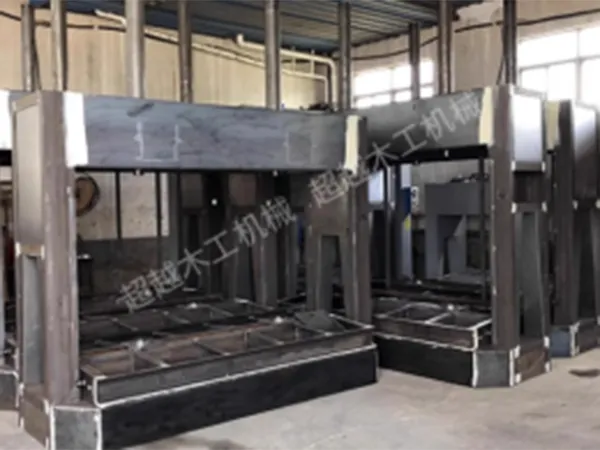

2. Main Machine Frame
  Main frame is made of high-quality national standard channel steel, and both sides are fully CNC machined with circular arcs. It undergoes long-term vibration aging treatment to ensure more uniform stress distribution.

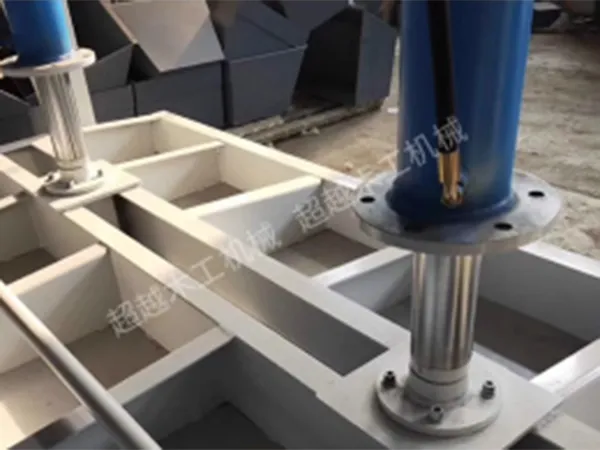

2. Control Drive
  A new type of integrated hydraulic system with an added accumulator control system is used.
  Multiple layers of large flat steel plates are arranged for bonding.

Technical Parameters

Worktable size	2500*1250mm
Maximum pressure	50T
Pressing platen spacing	1000-1800mm
Hydraulic cylinder specification	125*2pcs
Overall dimensions	30001250（2900,3200,3850,4500）mm
Motor power	4-5.5kW

Features

Steel door cold press machine can automatically perform feeding, gluing, and discharging without the need for additional material storage space.
PLC control ensures the consistency of gluing.
One machine can complete the entire process of door panel lamination.
Sheet metal appearance can be added as needed.
