We have a wide range of advanced punching equipment that uses hydraulic pressure to punch holes on door frame. With advanced PLC control systems and highly adjustable punching processes, our door frame punching machine not only improves production efficiency but also provides manufacturers with greater flexibility. Whether it's traditional or modern design, our steel door punching machines can meet the punching requirements for various door frame materials including steel, stainless steel, and others, as well as ideal for security doors, fire-rated doors, medical doors, and more.
-
-

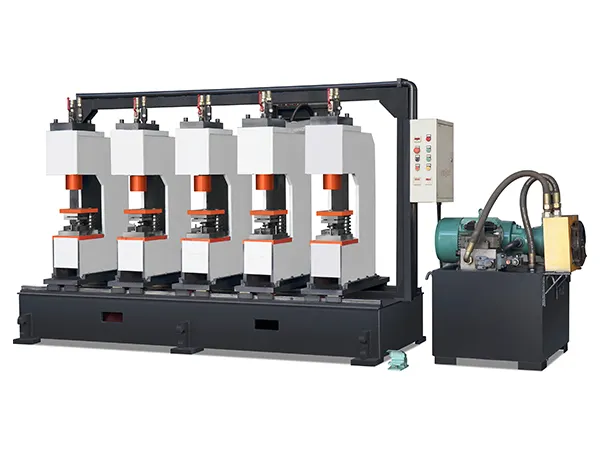

Multifunctional Hydraulic Punching Machine
Multi-station punching machine for metal door production
- NCM-168 multifunctional hydraulic punching machine is used for one-step punching of various holes such as lock holes, hinge holes, installation holes, and bending notches on the steel and stainless steel door frames and the front and back door panels of door leaves.
- Output of main cylinder 150kN
- Rated hydraulic pressure 25MPA
- Punching station 2-7, customizable
- Power 7.5/11kW, depending on product configuration
-
-
-
Multi-Head Hydraulic Punching Machine
Multi-station punching machine for metal door production
- NCM-150 Multi-head hydraulic punching machine is used for one-step punching and forming of various holes in steel and stainless steel door frames, including lock holes/hinge holes/installation holes/bending notches, etc. It uses hydraulic pressure to punch the door frame holes.
- Output of main cylinder 150kN
- Rated hydraulic pressure 25Mpa
- Punching station 2-7, customizable
- Power 7.5/11kw, depending on product configuration
-
-
-
Hydraulic Double Punching Machine
Double head punching machine for metal door production
- NCM-169 hydraulic double punching machine is used for one-step punching and forming of various holes in steel and stainless steel door frames, as well as front and rear door panels of door leafs, including lock holes/hinge holes/installation holes/ bending notches, etc.
- Output of main cylinder 150kN
- Rated hydraulic pressure 25Mpa
- Workbench size Customized
- Power 5.5/7.5kw, depending on product configuration.
-
-
-
Hydraulic Single Punching Machine
Single head punching machine for metal door production
- NCM-169 hydraulic single punching machine utilizes hydraulic pressure to perform one-step punching and forming of various holes, such as lock holes/hinge holes/installation holes/bending notches, in steel and stainless steel door frames, as well as front and rear door panels of doors.
- Output of main cylinder 150kN
- Rated hydraulic pressure 25Mpa
- Workbench size Customized
- Power 5.5/7.5kw, depending on product configuration
-
-
-
Inclinable Punching Machine
Mechanical punch press for hole punching of metal door frames
- NCM-JC inclinable punching machine uses turbocharging to punch and form the holes in door frames, and can also be used for notching before frame forming, section cutting after frame forming, or punching and forming of door frame accessories. Its integrated structure takes up a small floor space. It adopts a tilting design, allowing the main machine orientation to be adjusted as needed. The motor power is between 2.2-11w. View Details
-
-
-
CNC Punching Machine
Automatic punching machine for hole punching and notching prior to metal door frame formation
- NCM-SC CNC punching machine is advanced equipment used for punching and forming the holes in steel and stainless steel door frames after frame forming, or for notching before frame forming. Its punching force can reach 40T with a maximum punching frequency of 260 times/min.
- Punching pressure 40T
- Punching stations 18
- Tool layout Customizable
- Sheet thickness 3.0mm (stainless steel) /5.0mm (cold rolled plate)
-
-
-
CNC Turret Punch Press
Automatic punching machine for hole punching and notching prior to metal door frame formation
- NCM-SC CNC turret punch press is designed for punching and forming the holes in various steel and stainless steel door frames, as well as for notching before frame forming. It has a maximum capacity of 46 tool stations, and the maximum punching frequency is 2300 hpm.
- Nominal force 300kN
- Punching frequency 2300hpm
- Sheet metal size 5000*1250/5000*1500mm
- Maximum punching diameter at one time 88.9mm
-
Related Door Machinery
-

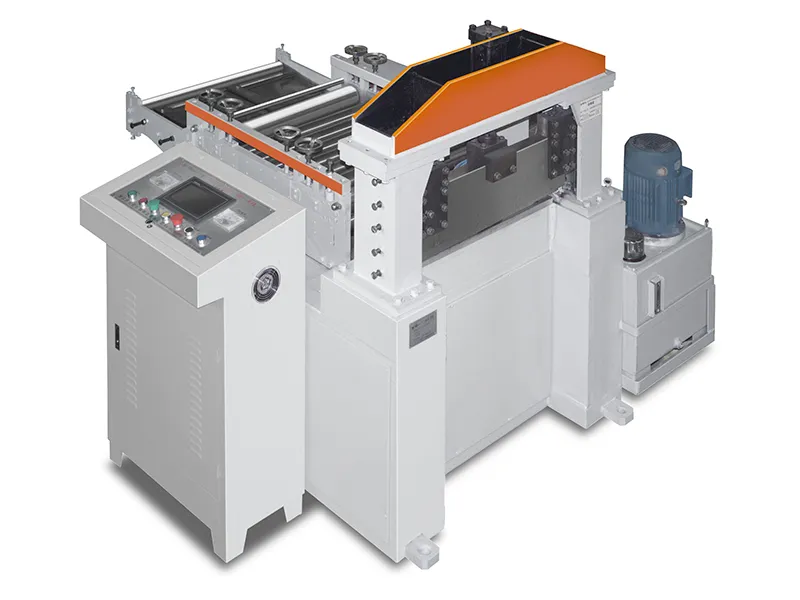

- Steel Coil Straightener Our steel coil straightener adopts straightening rolls to conduct fully automatic straightening operation, and cutting process is achieved through hydraulic cutting.
-

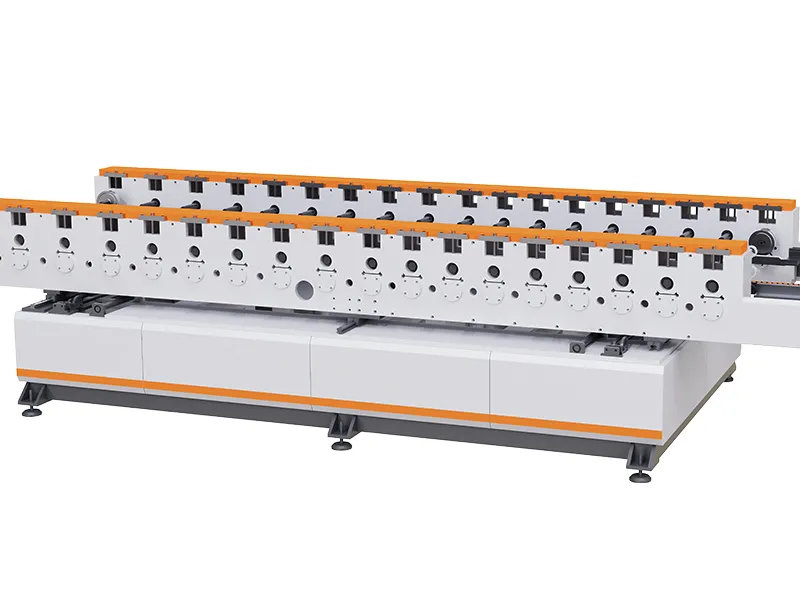

- Roll Forming Machine The door frame roll forming machine is one of the crucial production process chains in the modern construction and home industry for door manufacturing.
-

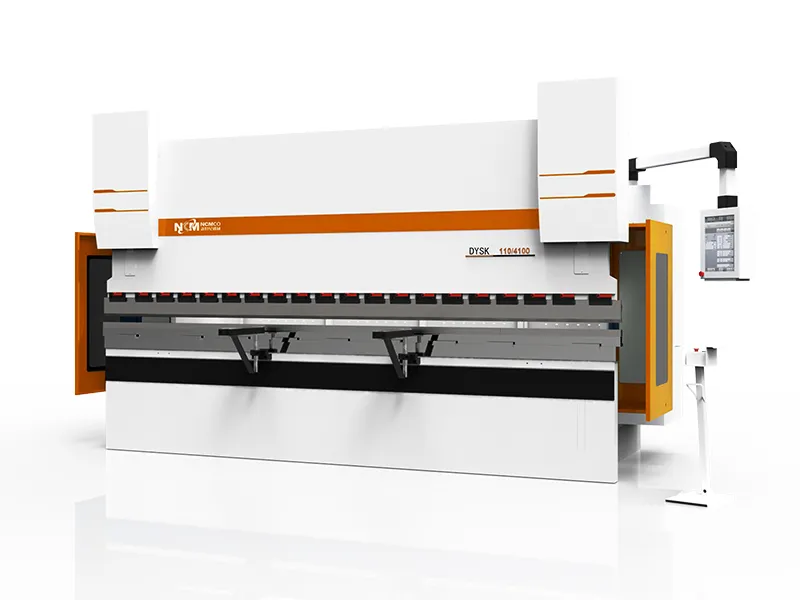

- Press Brake & Panel Bender As a professional in door manufacturing machinery, NCMCO offers a wide range of press brake and panel benders, torsion bar press brake, electro-hydraulic press brake, CNC panel bending center, etc.
-

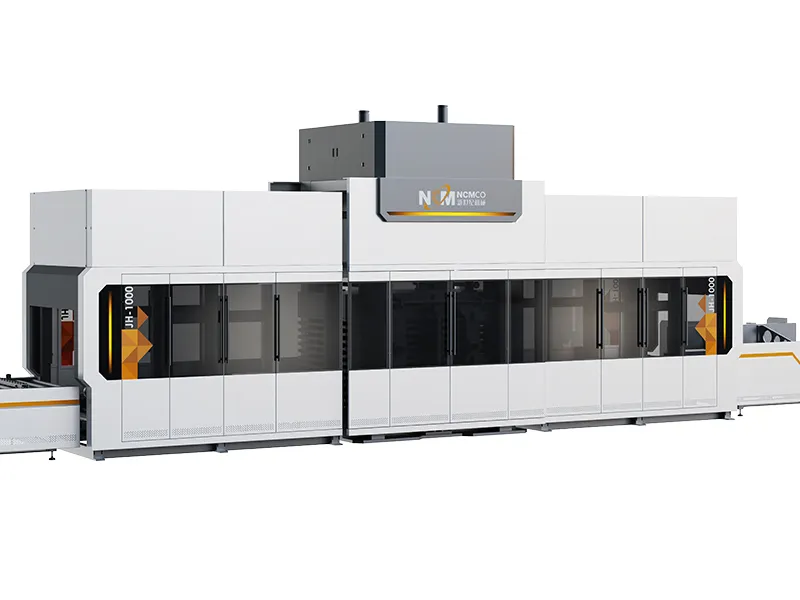

- Metal Door Press Machine Metal door press machine is dedicated to providing a sturdy and stable structure for door leaf products.
-
