Steel Door Frame & Panel Production Line
NCMCO has 26 years of experience in the metal door machine industry, we are happy to advise you from the selection of machines to the set-up of production line.
NCM-SC
CNC Turret Punch Press
Automatic punching machine for hole punching and notching prior to metal door frame formation
NCM-SC
Hydraulic Single Punching Machine
Automatic punching machine for hole punching and notching prior to metal door frame formation

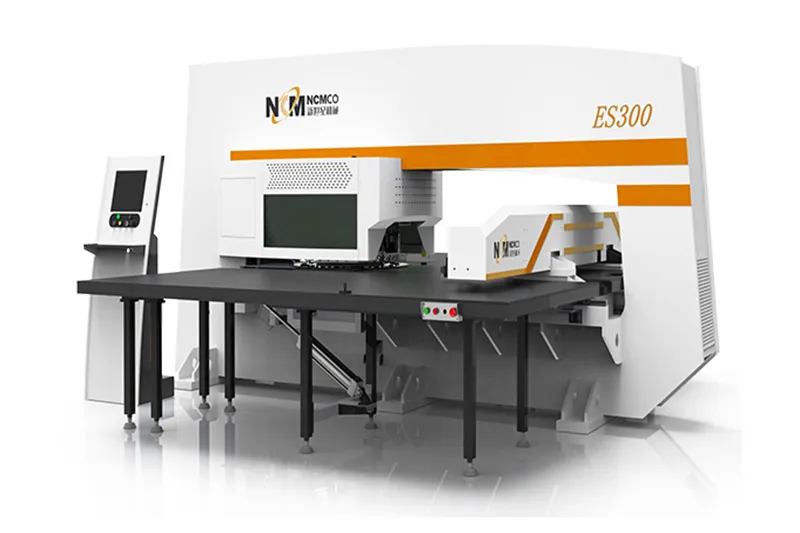

NCM-SC CNC turret punch press is designed for punching and forming the holes in various steel and stainless steel door frames, as well as for notching before frame forming. It has a maximum capacity of 46 tool stations, and the maximum punching frequency is 2300 hpm. It can accurately punch and form various hole positions, including lock holes, installation holes, etc., or be used for notching before frame forming.
Applications
Security doors
Fire-rated doors
Healthcare/hospital doors
Cleanroom doors
Technical Parameters
| Nominal force | 300kN |
| Punching frequency | 2300hpm |
| Sheet metal size | 5000*1250/5000*1500mm |
| Maximum punching diameter at one time | 88.9mm |
| Sheet thickness | ≤6.35mm |
| Processing accuracy | ±0.1mm |
| Feeding speed | ≤110m/min |
| Tool stations | 32 |
| Turret rotation speed | 30rpm |
| CNC axis number | 5 |
| Main motor power | 27kW |
| Air supply | 0.6Mpa |
| Dimensions | 5170/5670*5200*2300mm |
