Equipment for Metal Door Manufacturing

NCM-JC

Inclinable Punching Machine

Mechanical punch press for hole punching of metal door frames

NCM-JC

Hydraulic Single Punching Machine

Mechanical punch press for hole punching of metal door frames

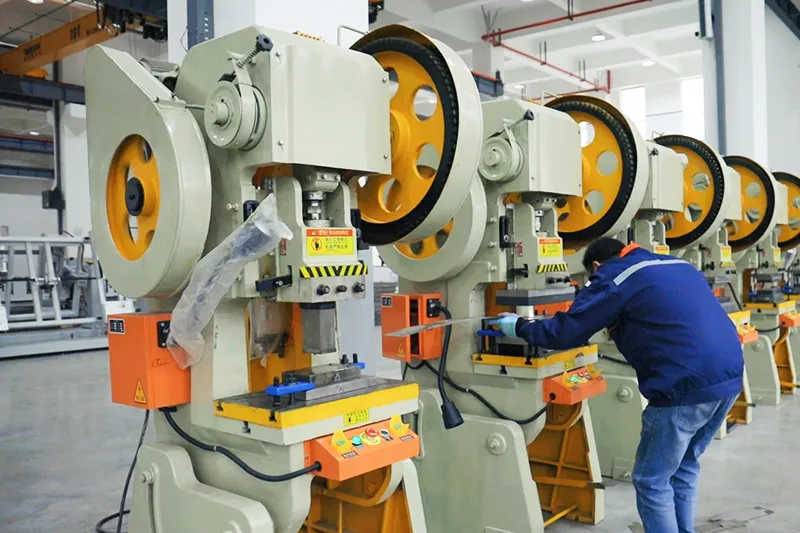

NCM-JC inclinable punching machine uses turbocharging to punch and form the holes in door frames, and can also be used for notching before frame forming, section cutting after frame forming, or punching and forming of door frame accessories. Its integrated structure takes up a small floor space. It adopts a tilting design, allowing the main machine orientation to be adjusted as needed. The motor power is between 2.2-11w.

Request a Quote

Applications

Security doors
Fire-rated doors
Healthcare/hospital doors
Cleanroom doors

Features

Integrated structure comes with small footprint.
Inclinable design allows for adjustable orientation of the main unit as needed.
Turbocharged production ensures faster speed.

Technical Parameters

Nominal pressure（T）	16	25	40	63	100
Slide stroke（mm）	60	70	100	120	130
Closed height（mm）	180	220	230	240	290
Tool hole diameter（mm）	35/40	40	50	50	60
Throat depth （mm）	190	200	240	250	305
Worktable length（mm）	480	600	690	770	1100
Worktable width（mm）	330	400	430	470	615
Worktable thickness（mm）	60	70	90	90	100
Distance between columns （mm）	215	230	285	310	360
Discharge hole diameter（mm）	125	130	150	160	200
Stroke（times/min）	130	70	45	55	40
Collecting rod adjustment （mm）	30	40	50	50	50
Motor power（kW）	2.2	3	4	5.5	11
Machine length（mm）	1000	1200	1500	1600	1900
Machine width（mm）	750	1000	1100	1100	1300
Machine height（mm）	1800	2000	2400	2600	3000
