Equipment for Metal Door Manufacturing

NCM-169

Hydraulic Single Punching Machine

Single head punching machine for metal door production

NCM-169

Hydraulic Single Punching Machine

Single head punching machine for metal door production

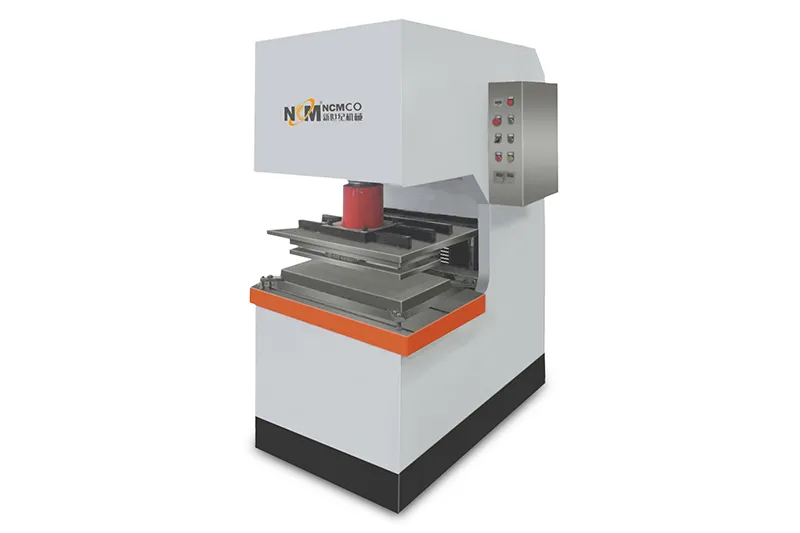

NCM-169 hydraulic single punching machine utilizes hydraulic pressure to perform one-step punching and forming of various holes, such as lock holes/hinge holes/installation holes/bending notches, in steel and stainless steel door frames, as well as front and rear door panels of doors. The punching tools are interchangeable, making the single-head punch press have a low initial equipment investment cost. It can be customized according to specific requirements to achieve various functions. The maximum output force of its main hydraulic cylinder is 150kn.

Request a Quote

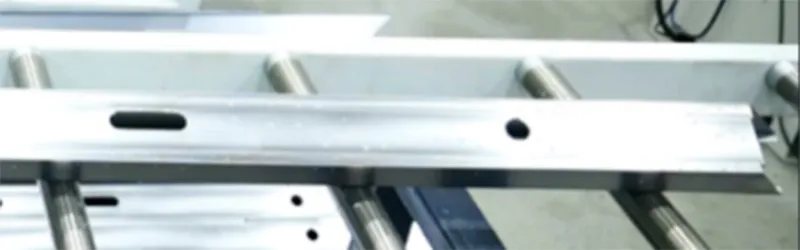

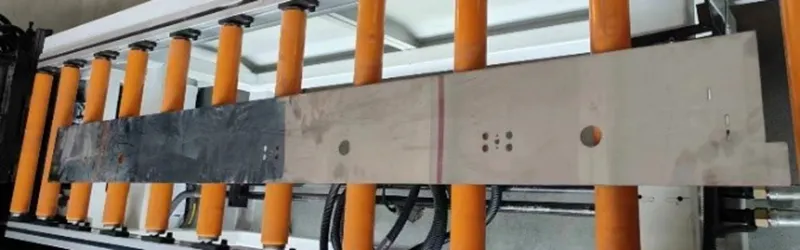

Samples

Applications

Security doors
Fire-rated doors
Healthcare/hospital doors
Cleanroom doors

Technical Parameters

Output of main cylinder	150kN
Rated hydraulic pressure	25Mpa
Worktable size	Customized
Power	5.5/7.5kw,depending on product configuration

Details

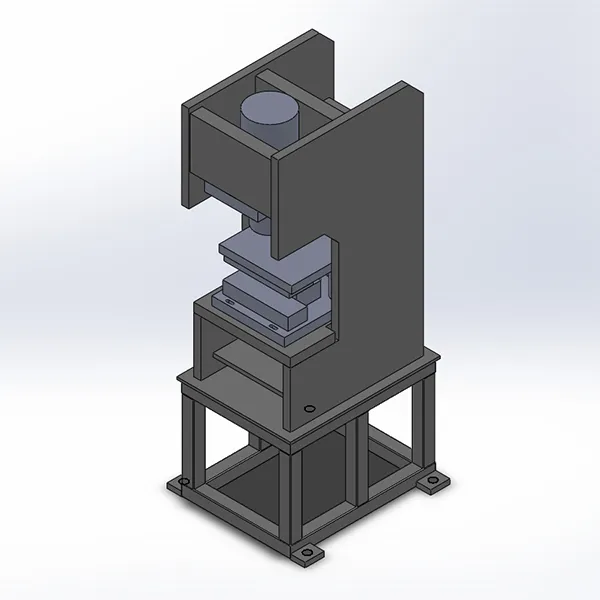

2. Machine Frame
  Through finite element analysis, the machine frame's force-deformation trend during operation can be studied to guide the design of a reasonable bed structure, ensuring consistent tooling working center and improving workpiece precision.

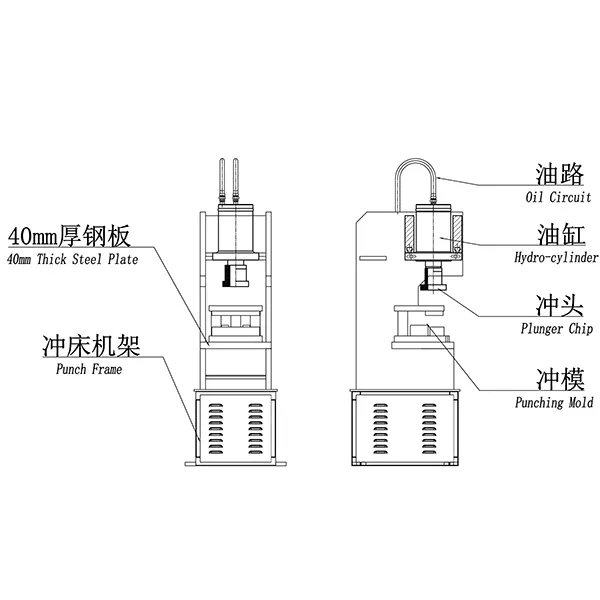

2. Punching Device
  Hydraulic punching offers strong force and no- burr surface.
  All hydraulic components are imported or from first-class domestic brands.
2. Punching Die
  1. The punching tools are all made of Cr12Mov material, which is processed by wire cutting after quenching.
  2. The punching tools are easy to disassemble and assemble, making it convenient for subsequent tool changes as needed.

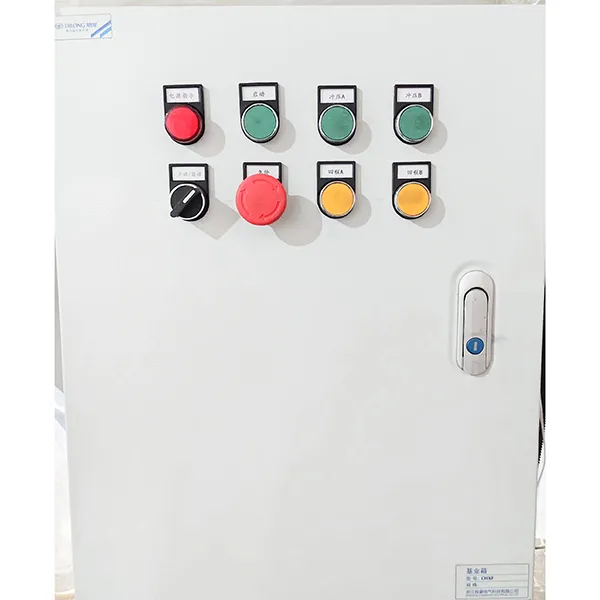

2. Electrical Control System
  PLC system allows for the self-setting of punching station
