1. Torsion Bar Press Brake
      CNC bending machine used to form metal door frames and door panelsNCM-ZW (Torsion Bar)
    2. NCM-ZW torsion bar press brake is extensively used for forming various types of steel and stainless steel door frames, or for the forming of the lock side/hinge side of the front and back panels of the door leaf. This sheet metal bending machine is equipped with a torsion bar synchronous adjustment structure, which can achieve precise bending operations at multiple angles and degrees by precisely controlling the movement of the torsion bar. Its main motor power ranges from 5.5kW to 18.5kW, and the nominal pressure can reach 630KN to 2000KN. Through the electrical control system, operators can easily set bending angles, bending lengths, and other parameters.View Details
    1. Electro-Hydraulic Press Brake
      CNC bending machine used to form metal door framesNCM-ZW (Electro-Hydraulic)
    2. NCM-ZW electro-hydraulic press brake is suitable for forming various types of steel and stainless steel door frames. The CNC bending equipment adopts integrated electro-hydraulic technology and CNC control system, with independent control function of the hydraulic cylinder and a fully closed-loop servo hydraulic energy-saving system. The bending angles on both sides can be adjusted as needed. The main motor power ranges from 5.5kW to 22kW, and the nominal pressure can reach 630KN to 3200KN. Precise control of bending force is achieved through the electro-hydraulic system, and multiple press brake toolings are available for forming, making it suitable for the production of non-standard door frames.View Details
    1. CNC Panel Bending Center / Panel Bender
      CNC bending machine for 4-sided bending of steel door panelsNCM-ZWL (Bending Center)
    2. NCM-ZWL CNC panel bending center is mainly used for one-step forming of the four sides of door panels. The front and back panels of door leaf are formed by CNC folding, therefore shaping the door panel sides. This CNC bending center is equipped with a robotic arm for side switching, enabling the completion of forming all four sides in one step without manual operation.View Details

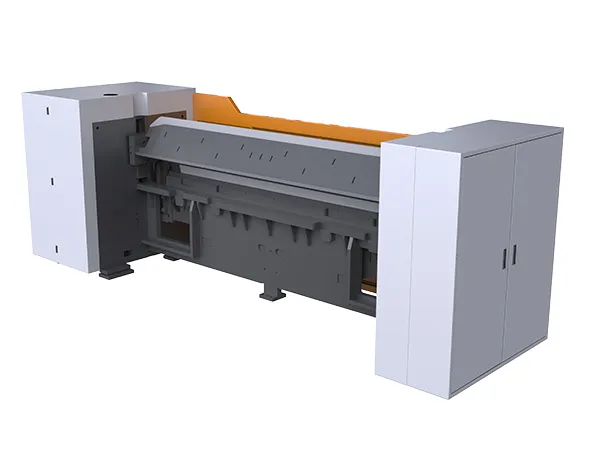

    1. CNC Steel Door Panel Side Bending Machine
      CNC bending machine for side bending of metal door panelsNCM-ZB (Side Bending)
    2. NCM-ZB CNC steel door panel side bending machine can be used in metal door production line to form sides of door panels, including lock side/ hinge side on front and back panels. It can complete bending operation with a bending length of 1mm to a maximum of 4200mm. During the positive and reverse folding process, there is no need for manual intervention in reversing, further improving production efficiency.View Details
Our team of engineers will answer all your questions regarding our metal door machines as well as solutions and services.
Contact Us
Related Door Machinery

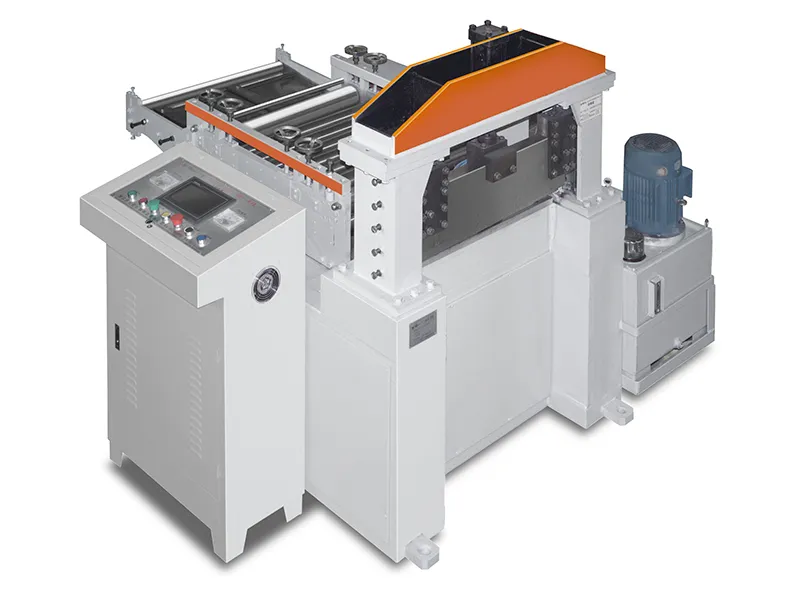

    1. Steel Coil Straightener
    2. Steel Coil Straightener Our steel coil straightener adopts straightening rolls to conduct fully automatic straightening operation, and cutting process is achieved through hydraulic cutting.

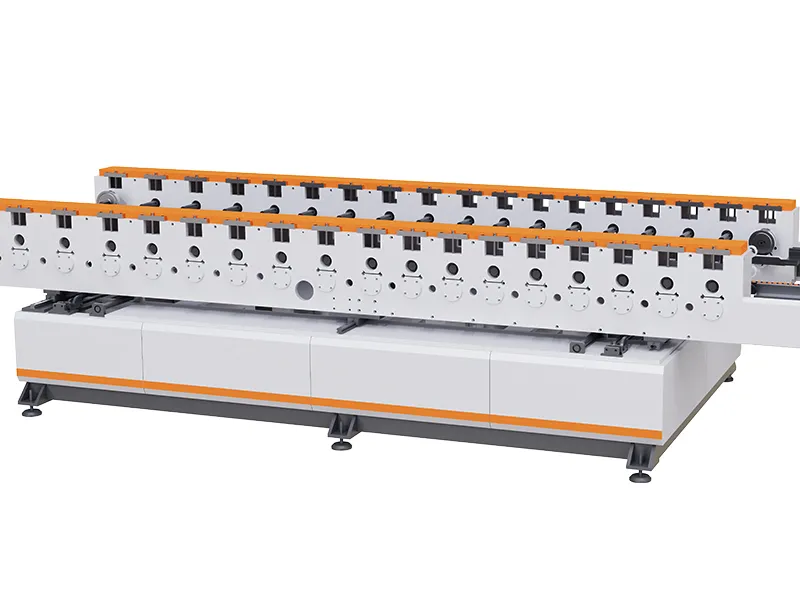

    1. Roll Forming Machine
    2. Roll Forming Machine The door frame roll forming machine is one of the crucial production process chains in the modern construction and home industry for door manufacturing.

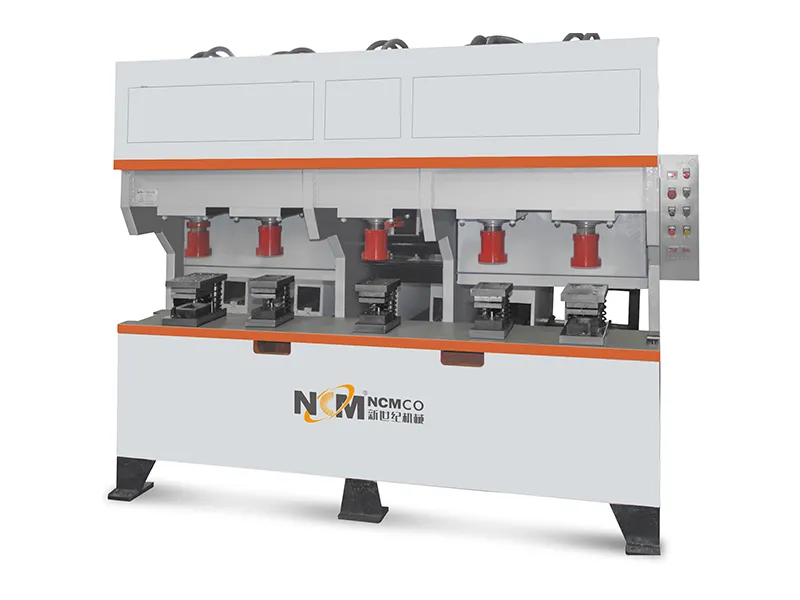

    1. Punching Machine
    2. Punching Machine We have a wide range of advanced punching equipment that uses hydraulic pressure to punch holes on door frame.

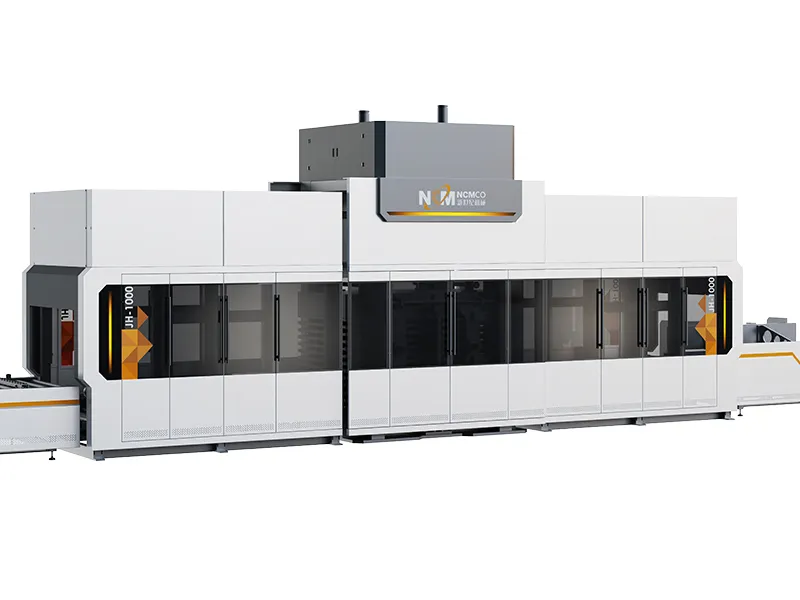

    1. Metal Door Press Machine
    2. Metal Door Press Machine Metal door press machine is dedicated to providing a sturdy and stable structure for door leaf products.
    1. Hydraulic Flanging Machine
    2. Hydraulic Flanging Machine It achieves stretching and folding of various steel door panels at both ends through hydraulic flanging with dual arches and dual molds.
    1. Laser Cutting Machine
    2. Laser Cutting Machine The equipment radiates high-intensity laser onto the material surface, causing the material to melt or vaporize through the interaction between the laser and the material.
    1. Shearing Machine
    2. Shearing Machine The door frame shearing machine includes hydraulic shearing machines, which adopts fully automatic hydraulic punching and shearing technology, achieving 45° corner cutting through hydraulic cutters.
    1. Glue Spreading Machine
    2. Glue Spreading Machine Glue spreading machine is used for providing high-quality surface coating and decorative effects for door panel products.
START WITH THE FACTORY REQUIREMENTS

Get a Customized Steel Door Factory Plan

Share the target door type, daily output, available plant dimensions and local market requirements. The NCMCO project team will prepare an initial process route and equipment configuration.
