Equipment for Metal Door Manufacturing

NCM-ZB

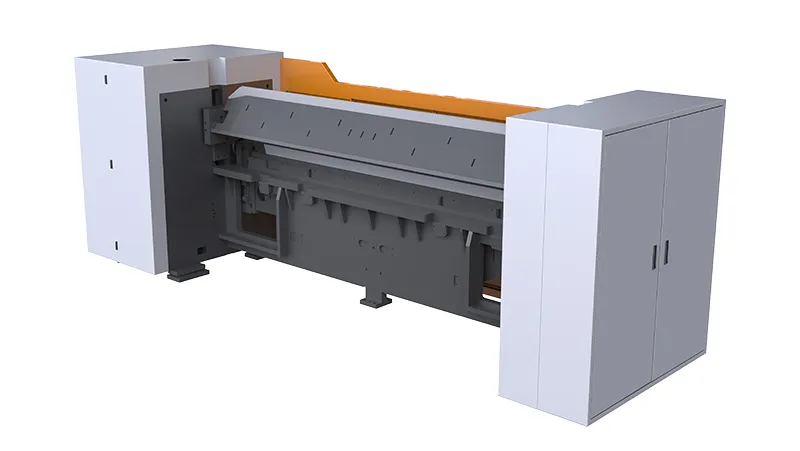

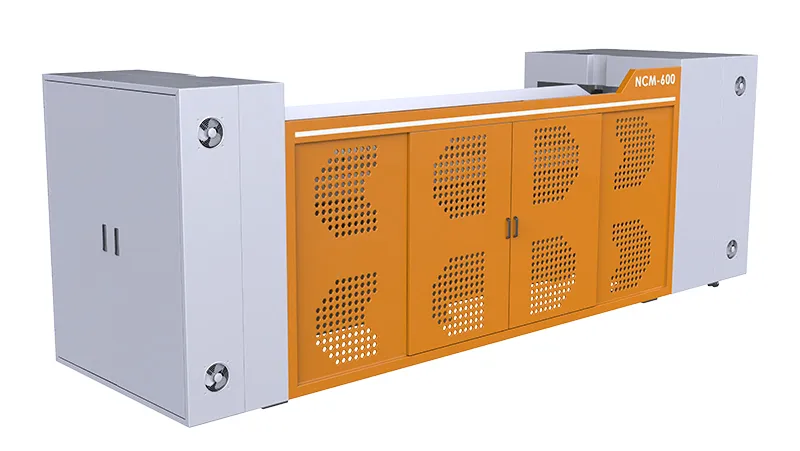

CNC Steel Door Panel Side Bending Machine

CNC bending machine for side bending of metal door panels

NCM-ZB

CNC Steel Door Panel Side Bending Machine

CNC bending machine for side bending of metal door panels

NCM-ZB CNC steel door panel side bending machine can be used in metal door production line to form sides of door panels, including lock side/ hinge side on front and back panels. It can complete bending operation with a bending length of 1mm to a maximum of 4200mm. During the positive and reverse folding process, there is no need for manual intervention in reversing, further improving production efficiency.

Request a Quote

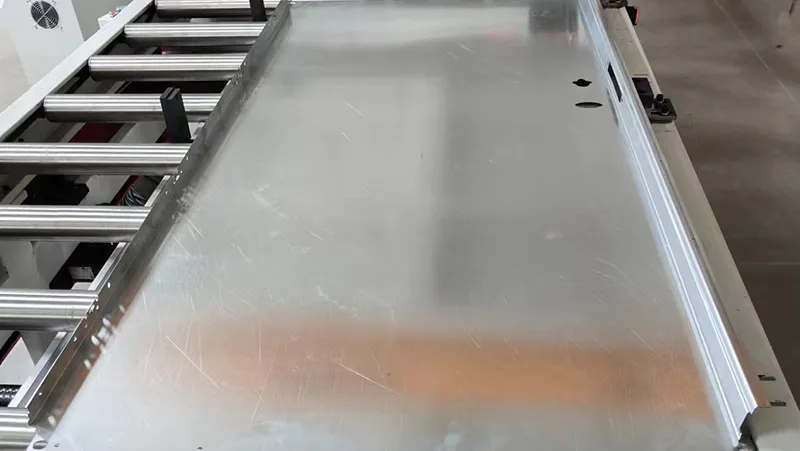

Steel Door Panel

Applications

Security doors
Fire-rated doors
Healthcare/hospital doors
Cleanroom doors

Technical Parameters

Item	NCM-1600	NCM-2600	NCM-3200	NCM-4200
Bending length	1600mm	2600mm	3200mm	4200mm
Material thickness	1mm	1mm	1mm	1mm
Working height	780mm	840mm	885mm	885mm
Avoidance height	120mm	100mm	100mm	100mm
Folding tool working range	100mm	100mm	100mm	100mm
Open height	130mm	200mm	250mm	250mm
Pivot adjustment range	0mm	0mm	±10mm	1±10mm
Axis number	7	7	8	8
Power	15kW	22kW	23kW	25kW
Dimensions	285014001600mm	285014001600mm	285014001600mm	285014001600mm
Weight	2500kg	4500kg	6500kg	7500kg

Features

An 8-axis full servo CNC system ensures fully CNC programming.
Automatic positive and reverse folding functions can be realized without manual intervention in reversing.
The upper tool and folding tool can be combined with a 10mm increment as needed to adapt to various sizes.
The maximum folding angle for both positive and reverse folding can reach 150°.
