Equipment for Metal Door Manufacturing

NCM-580

Steel Door Panel Roll Forming Machine

Roll forming line for producing metal door leaves with roll stands at two sides

Sheet metal type steel door panel roll forming machine

Basic type steel door panel roll forming machine

NCM-580

Steel Door Panel Roll Forming Machine

Roll forming line for producing metal door leaves with roll stands at two sides

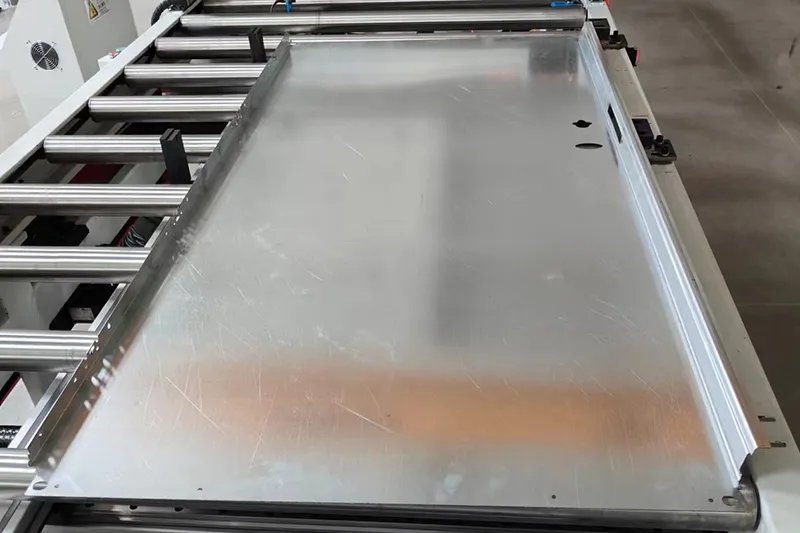

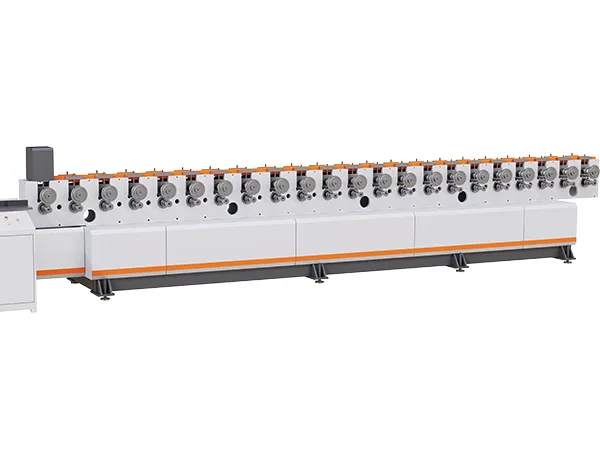

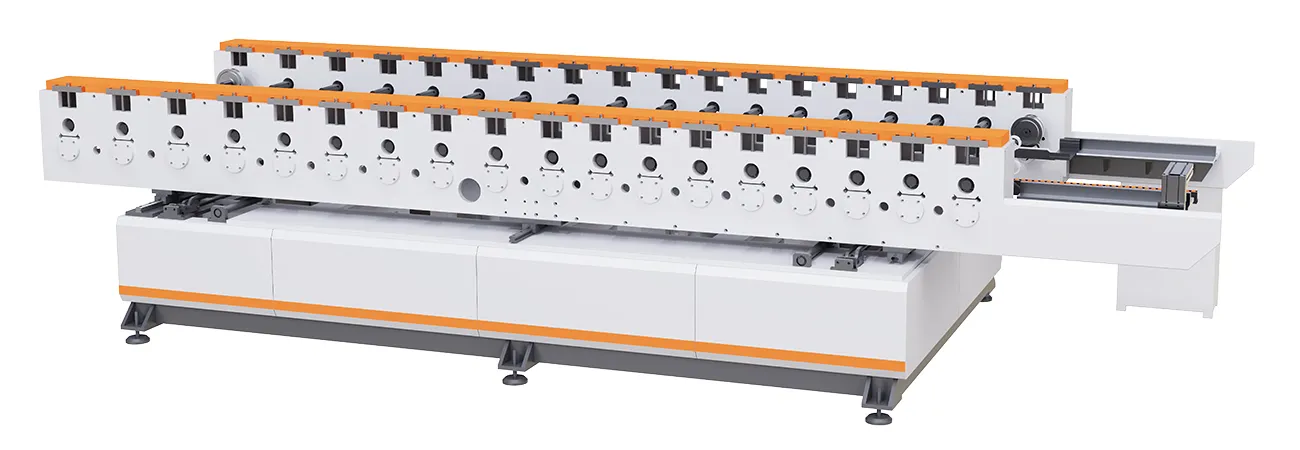

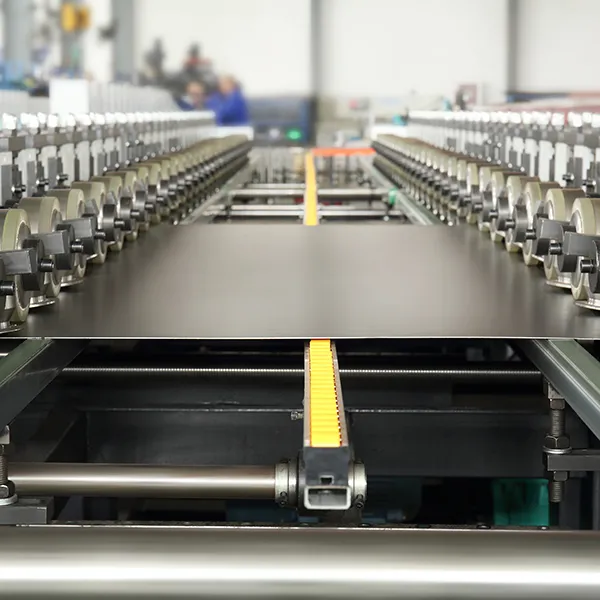

NCM-580 steel door panel roll forming machine adopts fully automatic roll-forming method with roll stands at both sides. It achieves forming and folding of lock side/hinge side for various steel and stainless steel door panels by dual-mold roll-forming method. It can achieve simultaneous forming of two door panel sides, with a maximum forming speed of 12m/min. Optional sheet metal appearance can also be added according to requirements.

Request a Quote

Applications

Security doors
Fire-rated doors
Healthcare/hospital doors
Cleanroom doors

Technical Parameters

Material thickness	0.5-1.0mm,customizable
Material width	400-1200mm,customizable
Production speed	8-12m/min,adjustable
Power	7.5-11kW,depending on product configuration

Features

Fully automatic roll-forming allows one person to operate multiple machines.
Automated operation comes with no need for additional material storage area while minimizing dowtime;
One machine can complete the forming of door panels.
Optional sheet metal appearance can be added as required.

Details

2. Machine Frame
  The main frame is welded with square tubes, and the welded structure has undergone professional stress analysis.
  The roll froming station is formed by cutting Q235 large plates at once, and then processed by CNC gantry milling.

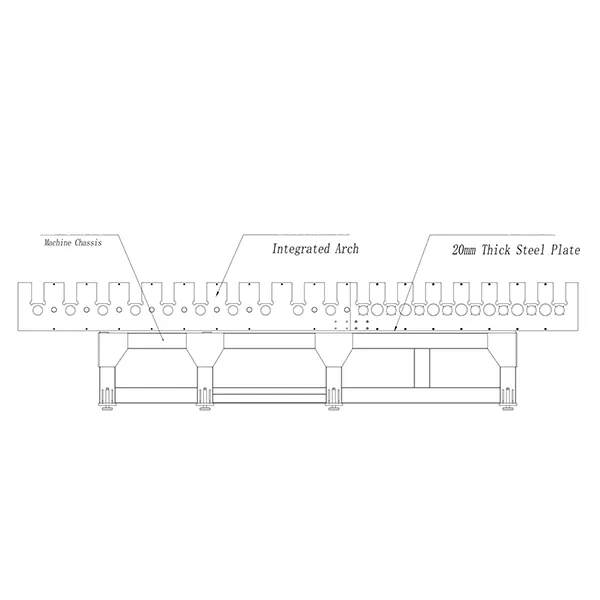

  A 20mm thick steel plate is added between the roll froming station and the lower machine frame to ensure the horizontality of the roll former.

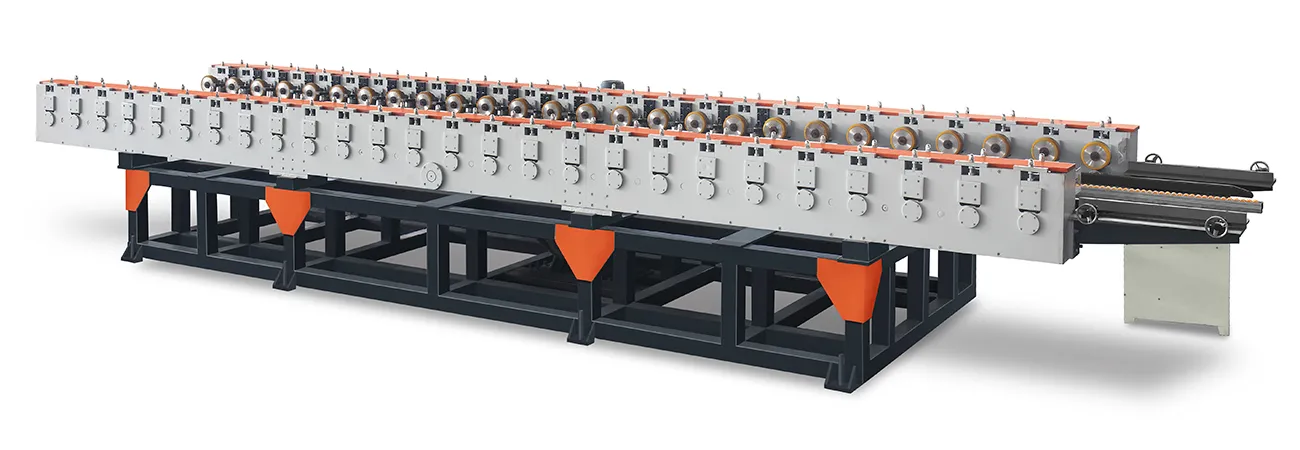

2. Roll Forming Machine
  Utilizing a structure with a single forming stand and dual molds, it can simultaneously form two differetn shapes in one operation.
  The roll forming molds are all processed using the CNC turning, heat treatment, CNC fine turing process, providing higher mold circularity and durability.

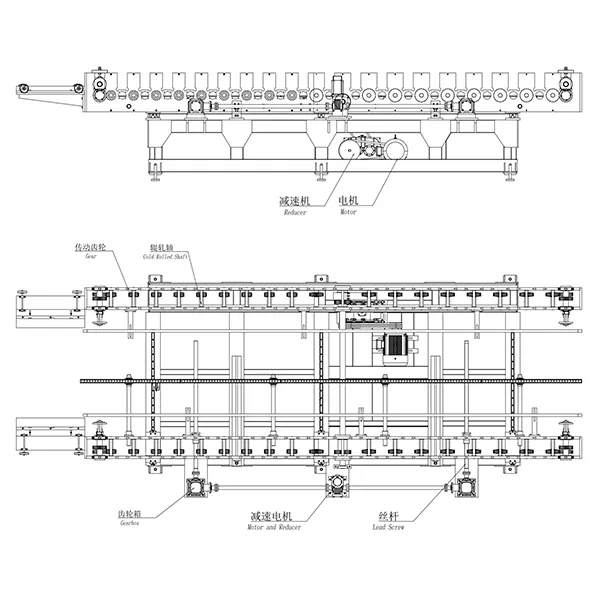

2. Transmission Device
  The roll forming station is equipped with a built-in transmission device, which prevents the dropping of debris and hand injuries.
  The motor and reducer are placed inside the machine frame, saving operational space.
2. Electrical Control System

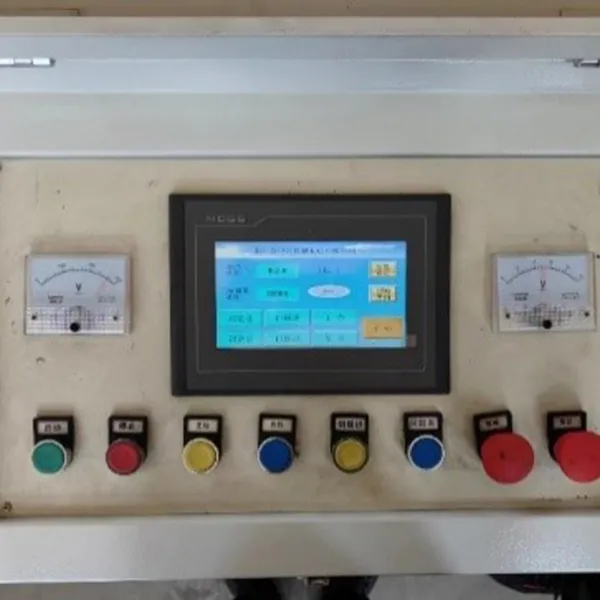

  The entire metal door forming machine is controlled by PLC system, optional in Delta/Siemens/ Mitsubishi, etc.
